API Type Cross-Border Pack Interface Specifications

System Interface (IF)

System Interface

Interface Method	HTTP(S)
Transmission Method	POST
Timeout Period	75 seconds (*1)
Data Type	JSON
Character Codes	UTF-8

No	Interface Code	<Interface Name>	Interface Description	Interface Type	Date and time of request	Request to	Remarks
01	SBPS-IF-OPEN-01	Payment request	Interface for carrying out the payment processing.	Synchronous/Asynchronous	Merchant	SBPS(CT)	（※1）
02	SBPS-IF-OPEN-02	Payment History Search	Interface that checks the specified payment transaction history (status) (refund history is not included in this search)	Synchronization	Merchant	SBPS(CT)	（※1）
			* Another API (SBPS-IF-OPEN-03) is used for refund transactions.
03	SBPS-IF-OPEN-03	Refund request	Refund request	Synchronous/Asynchronous	Merchant	SBPS(CT)	（※1）
04	SBPS-IF-OPEN-04	Refund History Search	Interface that check the specified refund transaction history (status)	Synchronization	Merchant	SBPS(CT)	（※1）
05	SBPS-IF-OPEN-05	Payment Cancellation	Interface for resolving inconsistency in the payment status by sending a payment cancellation message if a payment timeout occurs.	Synchronous/Asynchronous	Merchant	SBPS(CT)	（※1）
06	SBPS-IF-OPEN-06	Result Notification	When payType of "Payment Request" is "02" and "returnUrl" is a valid http address,  OPRAL sends the result notification about "http/https" to "returnUrl" after receiving the payment success reply.	Asynchronous	SBPS(CT)	Merchant	（※1）

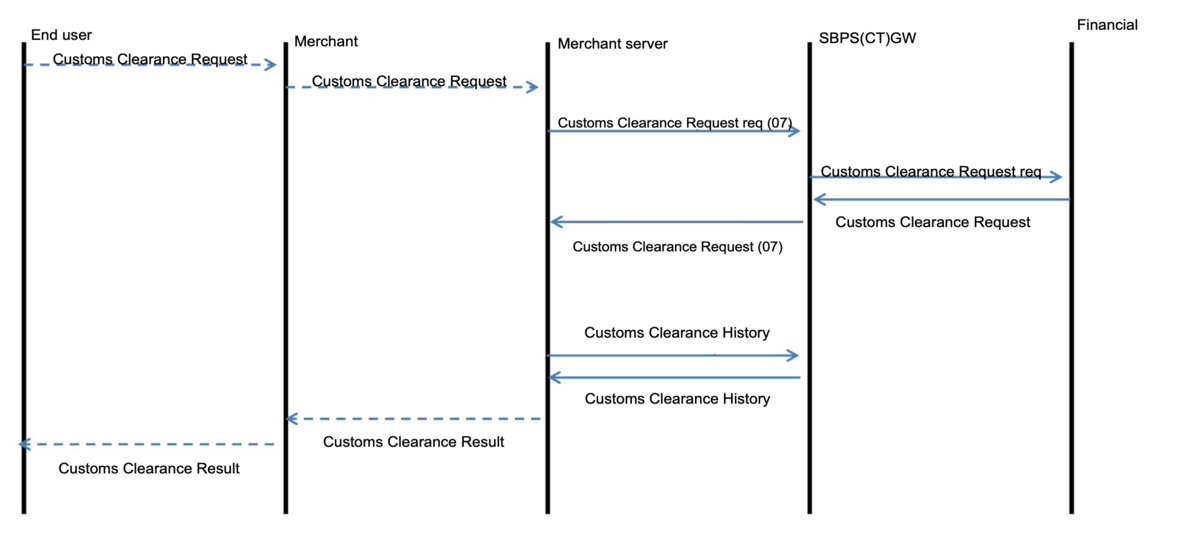

07	SBPS-IF-OPEN-07	Customs Clearance Request	After an online payment is completed,  the Customs Clearance Request interface can be called to carry out the customs clearance modification request process when the customs clearance request status is "2 - Application."	Synchronization	Merchant	SBPS(CT)	（※1）
08	SBPS-IF-OPEN-08	Customs Clearance History Search	Interface for searching results of customs clearance request.	Synchronization	Merchant	SBPS(CT)	（※1）

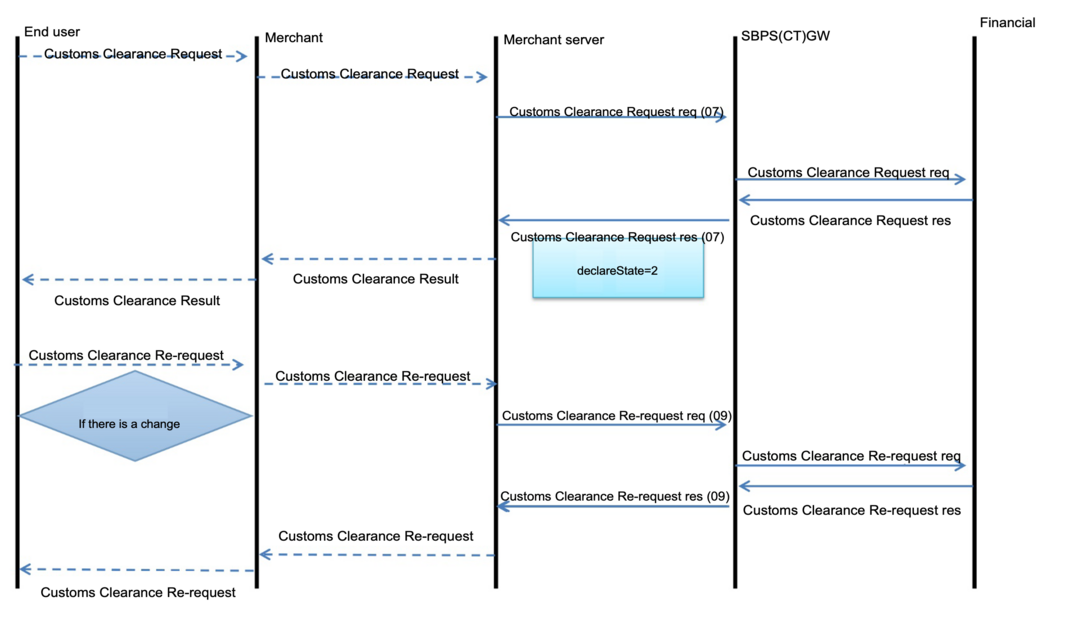

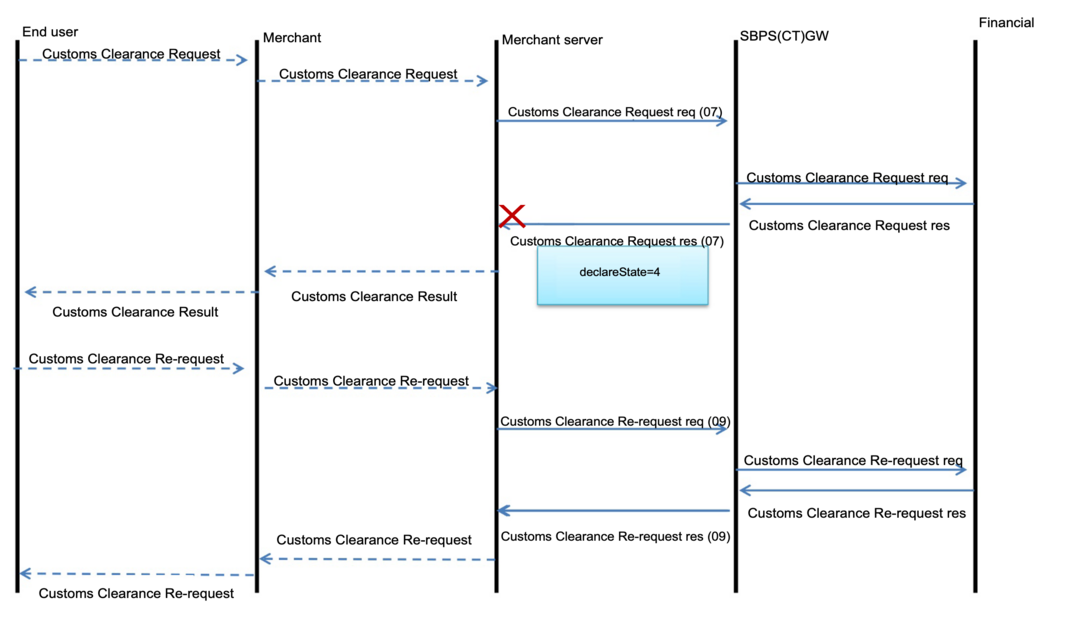

09	SBPS-IF-OPEN-09	Customs Clearance Re-request	The customs clearance can be requested again when the customs clearance request status is "2 - Application."	Synchronization	Merchant	SBPS(CT)	（※1）

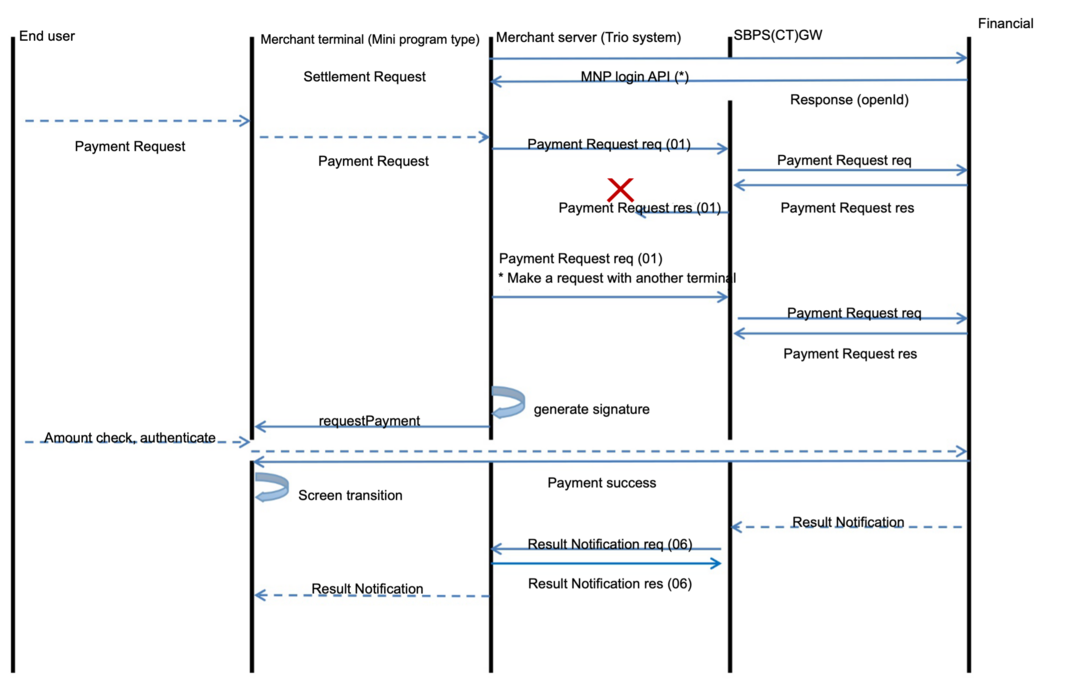

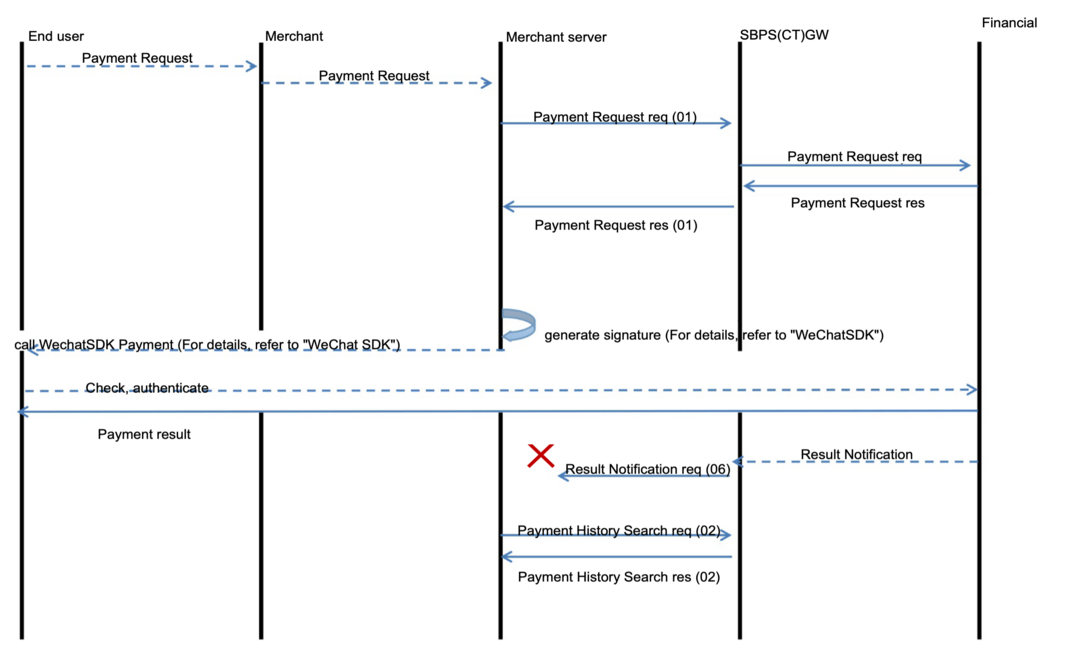

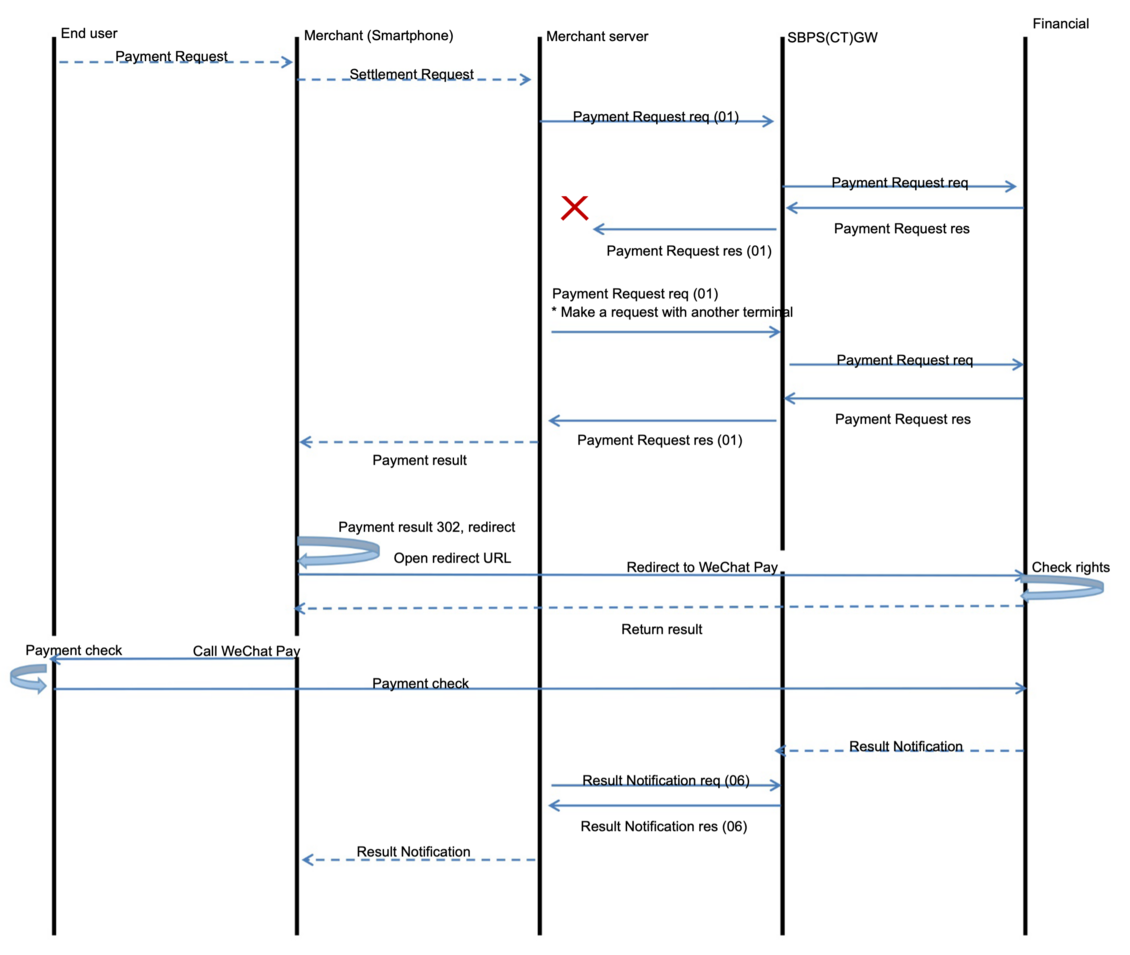

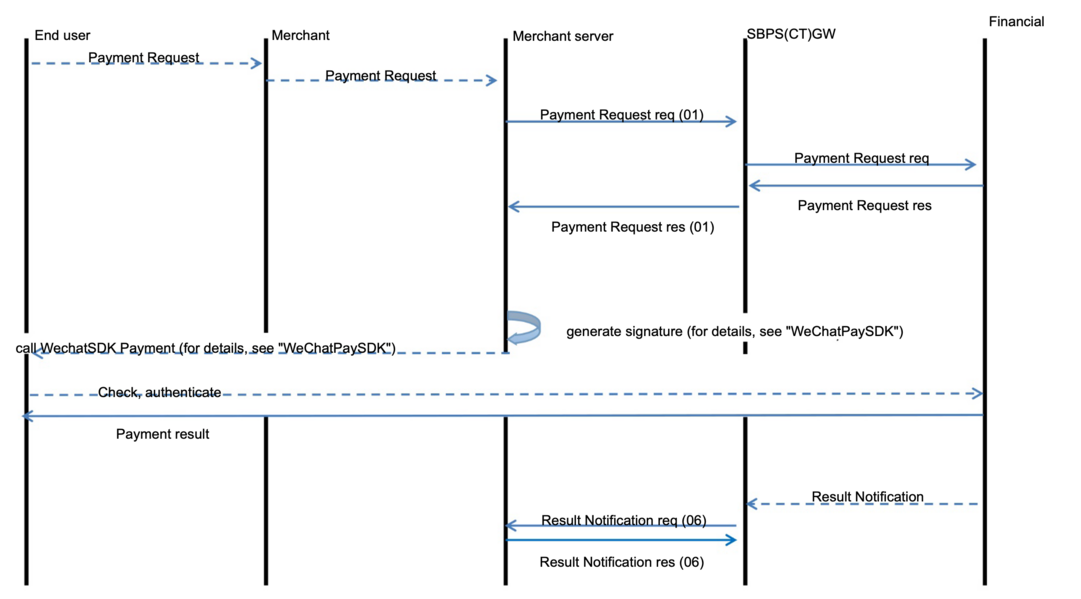

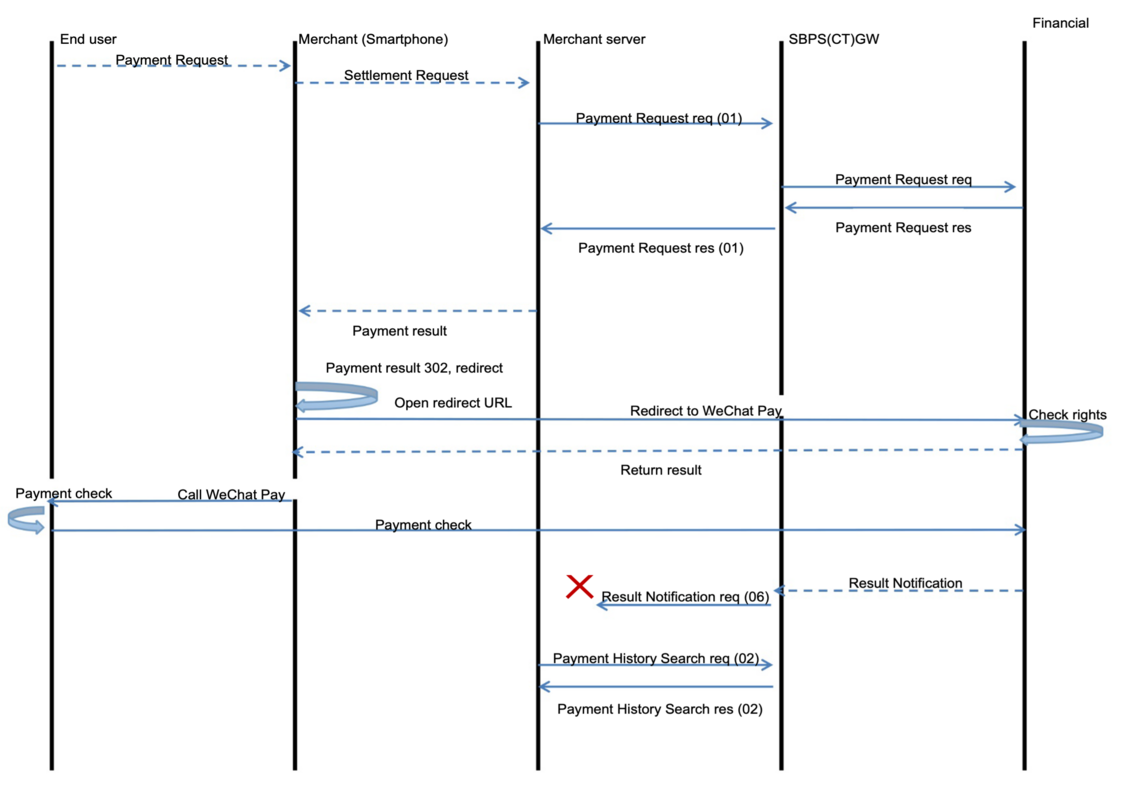

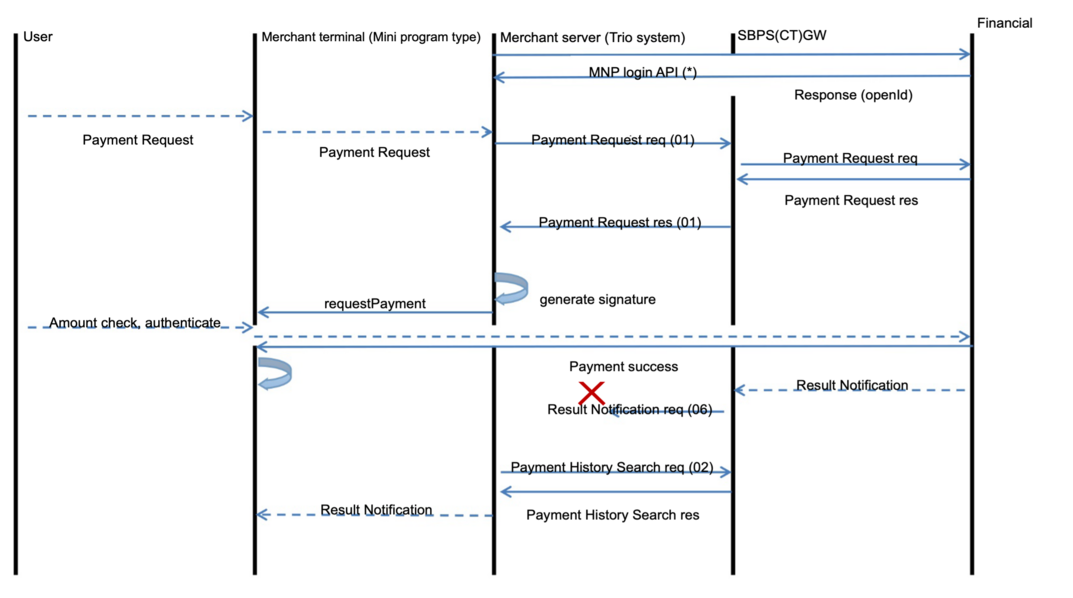

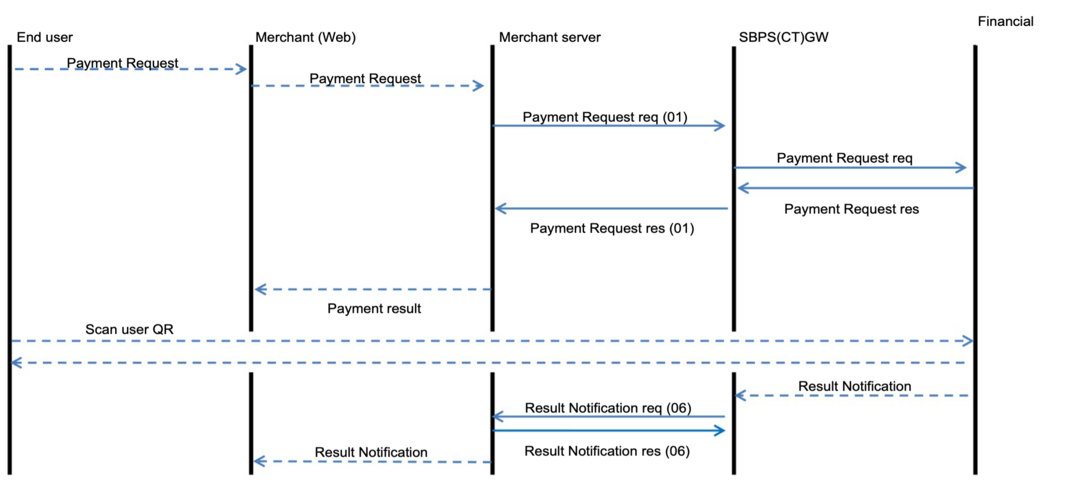

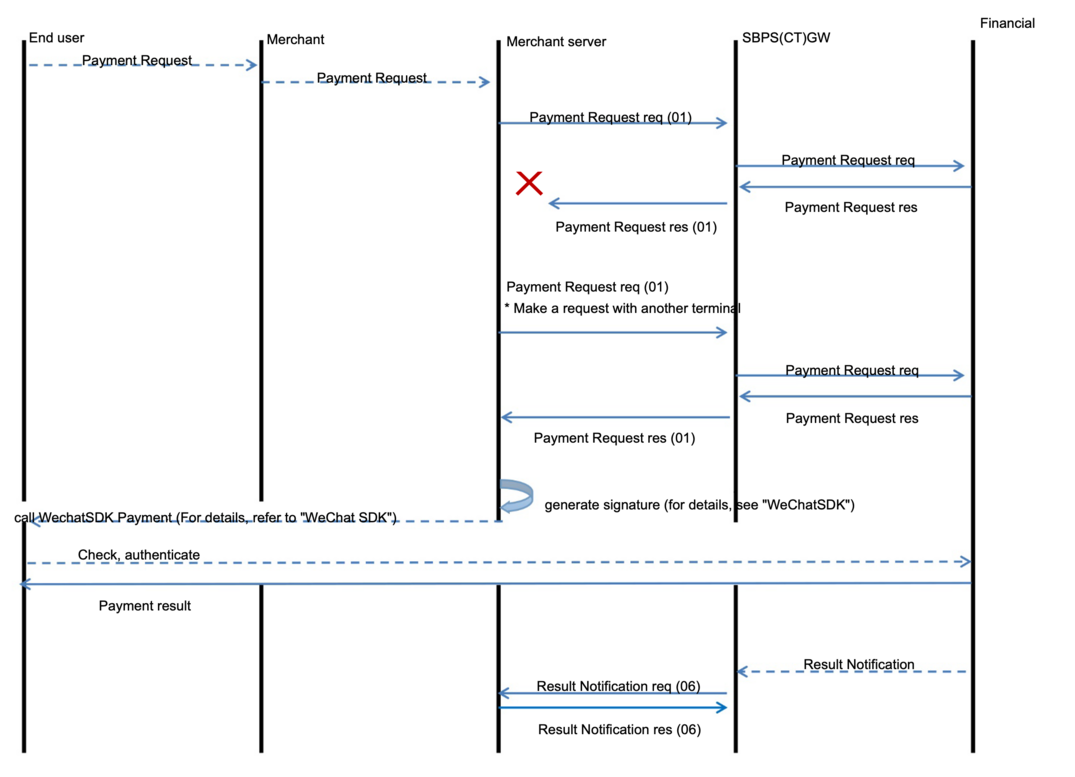

01. Payment Request

Interface Name	Payment request
Request Type	POST
URL	Test environment URL: https://{stg-url}/api/pay/pay/openCreate Production environment URL：https://{prod-url}/api/pay/pay/openCreate
Interface Applications	Interface for carrying out the payment processing.
Parameters	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional, C: Conditionally required)	Remarks
1	clientOrderNo			Terminal Processing Serial Number	String	32	Y	A process sequential number generated by the Merchant side.  The SBPS (CT) gateway checks the uniqueness.
2	orderPrice			Payment amount	Int	11	Y	It must be greater than or equal to 1 yen and must be an integer.
3	orderSubject			Payment Title	String	50	Y	“Purchased Item” fixed
4	payType			Reading Method	String	2	Y	02: Web Type (PC payment) 04: Mini program type 05: InAPP type 06: Web type (Smartphone payment)
5	BrandType			Financial Institution	String	2	Y	02:WeChat Pay
6	returnUrl			URL to which the result is notified	String	128	C	Used when notifying the merchant APP of the payment request result when payType="02", "04", or "05" is specified.
7	openId			EU User Label	String	128	C	Required when payType="04", "05"
8	subAppId			Contract Account ID	String	128	C	Required when payType="04", "05"
9	redirectUrl			Redirect URL	String	256	N	Optional when payType="06"
10	expireTime			Expiry time (in seconds)	int	5	N	Valid values [60 to 7200]. Default 7200 seconds.
11	logisticsType			Customs Clearance Declaration Type	String	2	N	00: clientOrderNo application type (The client shall completely ensure the uniqueness of clientOrderNo. This payment gateway uses clientOrderNo to make a customs clearance application.) 01: gwOrderNo application type (This payment gateway uses gwOrderNo whose uniqueness is ensured to make a customs clearance application.) Default value: 00: clientOrderNo application type
Request Example
{ “clientOrderNo”: “12345678901234567890”, “orderPrice”:100, “orderSubject”:”Purchased Item”, “payType”:”02″, “brandType”:”02″, “returnUrl”:”https://www.test.com/” }
Response BODY	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional, C: Conditionally required)	Description
1	result			Payment Request Result Structure	String	–	N	If resultType="SUCCESS", all columns are returned.
2		clientOrderNo		Terminal Processing Serial Number	String	32	N	Processing number generated by the merchant
3		gwOrderNo		GW Processing Serial Number	String	32	N	Processing sequence number generated by GW
4		BrandOrderNo		Financial Institution Number	String	50	N	Payment number generated by the financial institution
5		customerId		Customer ID	String	30	N	Number indicating the individual end user * As for WeChat, this corresponds to "openid"
6		orderSubject		Payment Title	String	50	N	“Purchased Item” fixed
7		currencyType		Payment Currency	String	10	N	“JPY” fixed
8		orderPrice		Payment amount	Int	11	N
9		orderStatus		Payment Status	Int	4	N	0: Waiting for payment 1: Payment success 2: Payment in progress 3: Payment failed 4: Payment cancellation 7: Payment in progress by end user
10		BrandType		Financial Institution	String	2	N	02: WeChatPay
11		codeUrl		Payment URL	String	128	N	Response when payType="02"
12		partnerId		Merchant Identification Number	String	128	N	Merchant ID managed by the financial institution. (subMerchantId) This is returned only when payType = "05."
13		prepayId		Prepaid ID	String	30	N	The prepayment success code is responded by the payment institution, and the corresponding field exists when payType = “04: Mini Program Type” and “05: InAPP Type Payment”.
14		orderStartTime		Payment start time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
15		orderFinishTime		Payment Completed Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
16	resultCode			Processing Result Code	String	64	Y
17	resultMessage			Processing Result MSG	String	1024	Y
18	resultType			Processing Result Type	String	15	Y	This result is the result of the process of the payment request and different from the payment status. This is SUCCESS when the payment request is normally created and the communication interface of the financial institution is normally called. The return value is FAILED in the following cases: 1. When the transaction number already exists 2. When failed to call the interface of the financial institution 3. When an internal system error occurs
Response example (please note that the columns are in random order)
{ "result":{ “clientOrderNo”:”samplecode”, “gwOrderNo”:”samplecode”, “brandOrderNo”:”samplecode”, “orderSubject”:”Purchased Item”, “currencyType”:”JPY”, “orderPrice”:100, “prepayId”:”Sample prepayID” “codeUrl”:”sample URI”, “orderStatus”:0, “brandType”:”02″ “orderStartTime”:”2018-01-01 00:00:01″ }, “resultCode”:”0000″, “resultMessage”:”null”, “resultType”:”SUCCESS” }

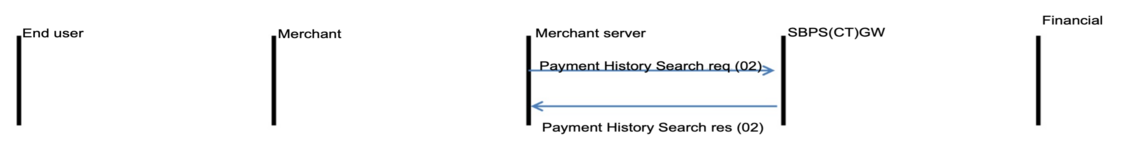

02.Payment History Search

Interface Name	Payment History Search
Request Type	POST
URL	Test environment URL: https://{stg-url}/api/pay/orderInfo/openGet Production environment URL: https://{prod-url}/api/pay/orderInfo/openGet
Interface Applications	Interface that checks the specified payment transaction history (status) (refund history is not included in this search)
Parameters	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Remarks
1	clientOrderNo			Terminal Processing Serial Number	String	32	Y (/N)	Set either the terminal processing serial number, GW settlement agency number, or settlement agency number on the left.
2	gwOrderNo			GW Financial Institution Number	String	32	Y (/N)	Set either the terminal processing serial number, GW settlement agency number, or settlement agency number on the left.
3	BrandOrderNo			Financial Institution Number	String	50	Y (/N)	Set either the terminal processing serial number, GW settlement agency number, or settlement agency number on the left.
Request Example
{ “clientOrderNo”: “12345678901234567890” }
Response BODY	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Description
1	result			Payment Request Result Structure	String	–	N	All the columns are returned  when resultType = "SUCCESS"
2		clientOrderNo		Terminal Processing Serial Number	String	32	N	Processing number generated by the merchant
3		gwOrderNo		GW Processing Serial Number	String	32	N	Processing sequence number generated by GW
4		BrandOrderNo		Financial Institution Number	String	50	N	Payment number generated by the financial institution
5		customerId		Customer ID	String	30	N	Number indicating the individual end user * As for WeChat, this corresponds to "openid"
6		orderSubject		Payment Title	String	50	N	“Purchased Item” fixed
7		currencyType		Payment Currency	String	10	N	“JPY” fixed
8		orderPrice		Payment amount	Int	11	N
9		Exchange Rate		Exchange Rate	Tring	16	N	Example: 0.056236
10		actualPrice		Local Currency Payment Amount	Int	11	N	The smallest unit of local currency
11		BrandType		Financial Institution	String	2	N	02: WeChatPay
12		orderStatus		Payment Status	Int	4	N	0: Waiting for payment 1: Payment success 2: Payment in progress 3: Payment failed 4: Payment cancellation 7: Payment in progress by end user
13		codeUrl		Payment URL	String	128	N	If payType="02,"04", "codeUrl" will be responded.
14		prepayId		Prepaid ID	String	30	N	The prepaid success code is returned by the payment institute,  and its corresponding field is included when payType = "04: Mini program type" or "05: InAPP type payment."
15		orderStartTime		Payment start time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
16		orderFinishTime		Payment Completed Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
17	resultCode			Processing Result Code	String	64	Y
18	resultMessage			Processing Result MSG	String	1024	Y
19	resultType			Processing Result Type	String	15	Y	This result is the result of the process of the payment request and different from the payment status. This is SUCCESS when the payment request is normally created  and the communication interface of the financial institution is normally called. The return value is FAILED in the following cases: 1. When the transaction number already exists 2. When failed to call the interface of the financial institution 3. When an internal system error occurs
Response example (please note that the columns are in random order)
{ "result":{ “clientOrderNo”:”samplecode”, “gwOrderNo”:”samplecode”, “brandOrderNo”:”samplecode”, “orderSubject”:”Purchased Item”, “currencyType”:”JPY”, “orderPrice”:100, “prepayId”:”Sample prepayID” “codeUrl”:”sample URI”, “orderStatus”:0, “brandType”:”02″ “orderStartTime”:”2018-01-01 00:00:01″ }, “resultCode”:”0000″, “resultMessage”:”null”, “resultType”:”SUCCESS” }

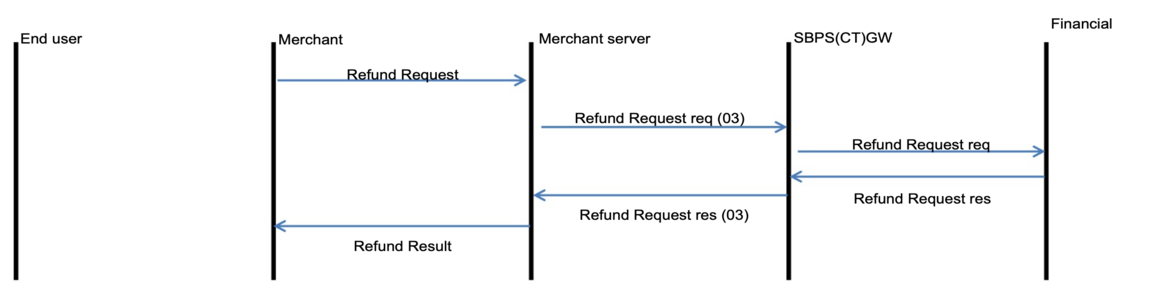

03. Refund Request

Interface Name	Refund request
Request Type	POST
URL	Test environment URL: https://{stg-url}/api/pay/refund/openCreate Production environment URL：https://{prod-url}/api/pay/refund/openCreate
Interface Applications	Payment Processing Interface
Parameters	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Remarks
1	clientOrderNo			Terminal Processing Serial Number	String	32	Y	Set the terminal processing serial number at the time of payment request
2	gwOrderNo			GW Processing Serial Number	String	32	Y	GW processing serial number at the time of payment request
3	clientRefundNo			Terminal Refund Processing Serial Number	String	32	Y	Refund processing serial numbers generated by merchant side, A unique check is performed on the GW side.
4	refundPrice			Refund Amount	Int	11	Y	The amount of refund shall be an integer greater than or equal to the minimum amount of refund  and less than or equal to the payment amount.
Request Example
{ “clientOrderNo”: “12345678901234567890” }
Response BODY	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional, C: Conditionally required)	Description
1	result			Refund Request Result Structure	String	–	N	All the columns are returned  when resultType = "SUCCESS"
2		clientRefundNo		Terminal Refund Processing Serial Number	String	32	N	Processing number generated by the merchant
3		gwRefundNo		GW Refund Processing Serial Number	String	32	N	Refund processing sequence number generated by GW
4		brandRefundNo		Financial Institution Refund Number	String	50	N	Financial institution refund number generated by the financial institution
5		clientOrderNo		Terminal Processing Serial Number	String	32	N	Terminal processing serial number at the time of payment request
6		gwOrderNo		GW Processing Serial Number	String	32	N	GW processing serial number at the time of payment request
7		BrandOrderNo		Financial Institution Number	String	50	N	Financial institution number at the time of payment request
8		orderPrice		Payment amount	Int	11	N	Payment amount at the time of payment request
9		refundStartTime		Refund Start Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
10		refundFinishTime		Refund Completion Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
11		currencyType		Payment Currency	String	10	N	“JPY” fixed
12		refundPrice		Refund Amount	Int	11	N	<= Payment amount at time of payment request
13		Exchange Rate		Exchange Rate	String	16	N	Example: 0.056236
14		actualPrice		Local Currency Payment Amount	Int	11	N	The smallest unit of local currency
15		refundStatus		Refund Status	Int	4	N	1: Refund success 3: Refund failed
16	resultCode			Processing Result Code	String	64	Y
17	resultMessage			Processing Result MSG	String	1024	Y
18	resultType			Processing Result Type	String	15	Y	This result is the result of the process of the payment request and different from the payment status. This is SUCCESS when the payment request is normally created  and the communication interface of the financial institution is normally called. The return value is FAILED in the following cases: 1. When the transaction number already exists 2. When failed to call the interface of the financial institution 3. When an internal system error occurs
Response example (please note that the columns are in random order)
{ "result":{ “clientRefundNo”:”samplecode”, “gwRefundNo”:”samplecode”, “brandRefundNo”:”2008012001201706261093075024″, “clientOrderNo”:”samplecode”, “gwOrderNo”:”samplecode”, “brandOrderNo”:”2008012001201706261093075024″, “orderPrice”:100, “refundStartTime”:”2017-06-26 12:23:31″, “refundFinishTime”:”2017-06-26 12:23:33″, “currencyType”:”JPY”, “refundPrice”:100, “refundStatus”:1 }, “resultCode”:”0000″, “resultMessage”:”null”, “resultType”:”SUCCESS” }

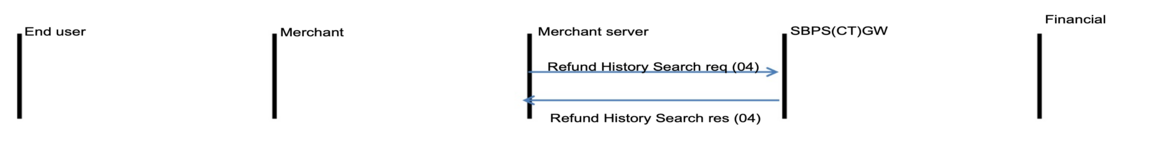

04.Refund History Search

Interface Name	Refund History Search
Request Type	POST
URL	Test environment URL: https://{stg-url}/api/pay/refundInfo/openGet Production environment URL：https://{prod-url}/api/pay/refundInfo/openGet
Interface Applications	Interface that check the specified refund transaction history (status)
Parameters	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Remarks
1	clientRefundNo			Terminal Refund Processing Serial Number	String	32	Y(/N)	Set either the terminal refund processing serial number, GW refund processing number, or financial institution refund number on the left.
2	gwRefundNo			GW Refund Processing Serial Number	String	32	Y(/N)	Set either the terminal refund processing serial number, GW refund processing number, or financial institution refund number on the left.
3	brandRefundNo			Financial Institution Refund Number	String	50	Y(/N)	Set either the terminal refund processing serial number, GW refund processing number, or financial institution refund number on the left.
Request Example
{ “client_refund_no”: “samplecode” }
Response BODY	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Description
1	result			Refund Research Result Structure	String	–	N	All the columns are returned when resultType = "SUCCESS." "brandRefundNo" will be returned only for the Chinese financial institution.
2		clientRefundNo		Terminal Refund Processing Serial Number	String	32	N	Processing number generated by the merchant
3		gwRefundNo		GW Refund Processing Serial Number	String	32	N	Refund processing sequence number generated by GW
4		brandRefundNo		Financial Institution Refund Number	String	50	N	Financial institution refund number generated by the financial institution
5		clientOrderNo		Terminal Processing Serial Number	String	32	N	Terminal processing serial number at the time of payment request
6		gwOrderNo		GW Processing Serial Number	String	32	N	GW processing serial number at the time of payment request
7		BrandOrderNo		Financial Institution Number	String	50	N	Financial institution number at the time of payment request
8		orderPrice		Payment amount	Int	11	N	Payment amount at the time of payment request
9		refundStartTime		Refund Start Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
10		refundFinishTime		Refund Completion Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
11		currencyType		Payment Currency	String	10	N	“JPY” fixed
12		refundPrice		Refund Amount	Int	11	N	Payment amount at the time of payment request
13		Exchange Rate		Exchange Rate	String	16	N	Example: 0.056236
14		actualPrice		Local Currency Payment Amount	Int	11	N	The smallest unit of local currency
13		refundStatus		Refund Status	Int	4	N	1: Refund Successful 3: Refund Failure
14	resultCode			Processing Result Code	String	64	Y
15	resultMessage			Processing Result MSG	String	1024	Y
16	resultType			Processing Result Type	String	15	Y	This result is the result of the process of the payment request and different from the payment status. This is SUCCESS when the payment request is normally created  and the communication interface of the financial institution is normally called. The return value is FAILED in the following cases: 1. When an internal system error occurs
Response example (please note that the columns are in random order)
{ "result":{ “clientRefundNo”:”samplecode”, “gwRefundNo”:”samplecode”, “brandRefundNo”:”2008012001201706261093075024″, “clientOrderNo”:”samplecode”, “gwOrderNo”:”samplecode”, “brandOrderNo”:”2008012001201706261093075024″, “orderPrice”:100, “refundStartTime”:”2017-06-26 12:23:31″, “refundFinishTime”:”2017-06-26 12:23:33″, “currencyType”:”JPY”, “refundPrice”:100, “refundStatus”:1 }, ”resultCode”:”0000″, “resultMessage”:”null”, “resultType”:”SUCCESS” }

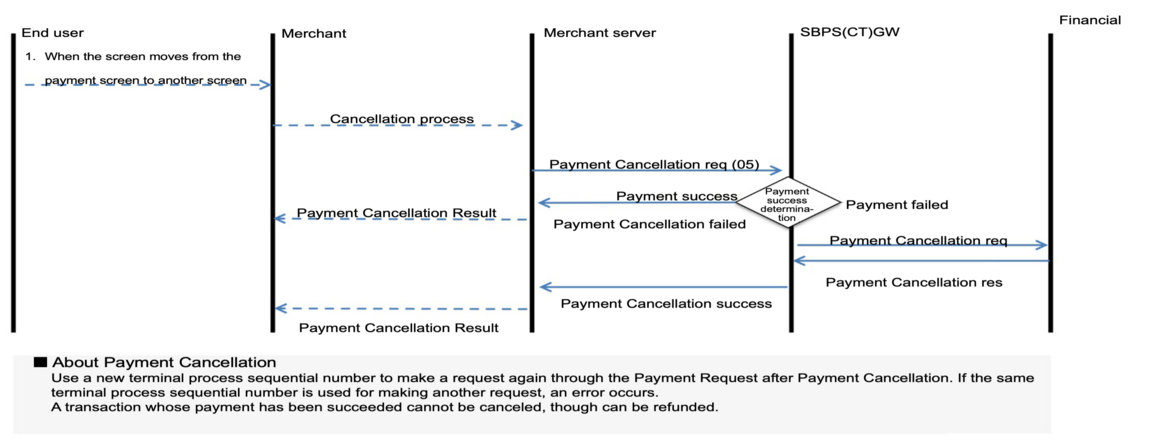

05.Payment Cancellation

Interface Name	Payment Cancellation
Request Type	POST
URL	Test environment URL: https://{stg-url}/api/pay/pay/openClose Production environment URL：https://{prod-url}/api/pay/pay/openClose
Interface Applications	An interface that resolves settlement status discrepancies by sending a payment cancellation message when a payment timeout occurs.
Parameters	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Remarks
1	clientOrderNo			Terminal Processing Serial Number	String	32	Y
2	gwOrderNo			GW Financial Institution Number	String	32	N
Request Example
{ “clientOrderNo”: “4a5076b8d82d4e16a9d83ae6a2a40b94”, “gwOrderNo”: “4a5076b8d82d4e16a9d83ae6a2a40b94” }
Response BODY	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Description
1	result			Payment Cancellation Result Structure	String	–	N	All the columns are returned  when resultType = "SUCCESS"
2		clientOrderNo		Terminal Processing Serial Number	String	32	N	Processing number generated by the merchant
3		gwOrderNo		GW Processing Serial Number	String	32	N	Processing sequence number generated by GW
4		orderSubject		Payment Title	String	50	N	“Purchased Item” fixed
5		currencyType		Payment Currency	String	10	N	“JPY” fixed
6		orderPrice		Payment amount	Int	11	N
7		orderStatus		Payment Status	Int	4	N	1: Payment Success 3: Payment Failed 4：Payment cancellation
8		BrandType		Financial Institution	String	2	N	02:WeChat Pay
9		orderStartTime		Payment start time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
10	resultCode			Processing Result Code	String	64	Y
11	resultMessage			Processing Result MSG	String	1024	Y
12	resultType			Processing Result Type	String	15	Y	This result is the result of the process of the payment request and different from the payment status. This is SUCCESS when the payment request is normally created  and the communication interface of the financial institution is normally called. The return value is FAILED in the following cases: 1. When the transaction number already exists 2. When failed to call the interface of the financial institution 3. When an internal system error occurs
Response example (please note that the columns are in random order)
{ "result":{ “clientOrderNo”:”samplecode”, “gwOrderNo”:”samplecode”, “orderSubject”:”Purchased Item”, “currencyType”:”JPY”, “orderPrice”:100, “orderStatus”:4, “brandType”:”02″, “orderStartTime”:”2018-01-01 00:00:01″ }, ”resultCode”:”0000″, “resultMessage”:”null”, “resultType”:”SUCCESS” }

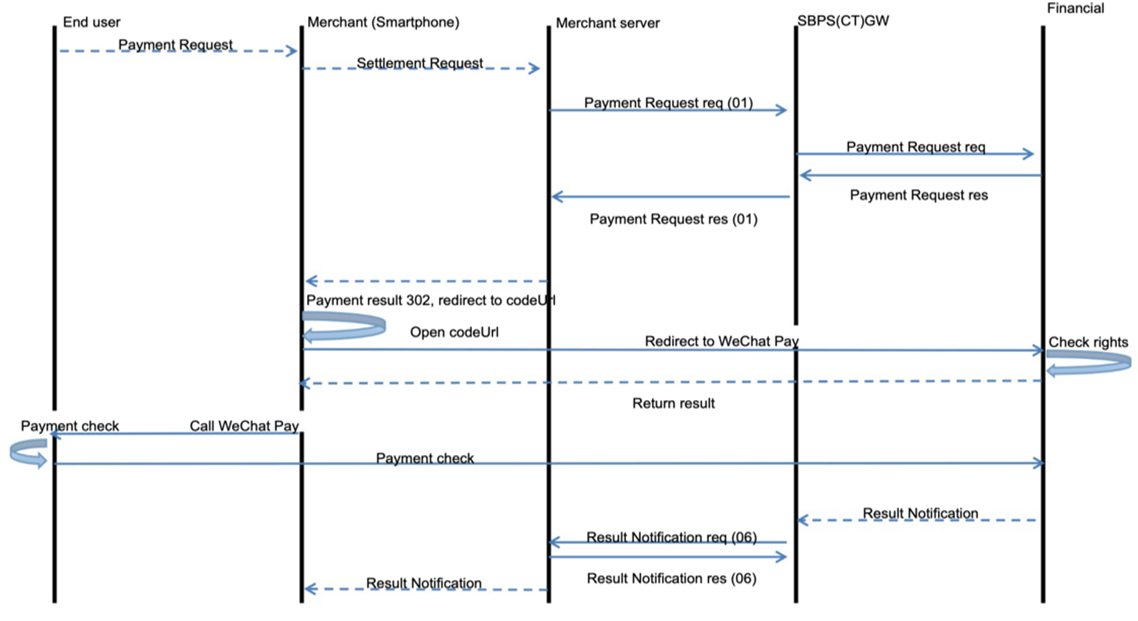

06.Result Notification

Interface Name	Result Notification
Request Type	POST
URL	https://XXXX returnUrl result notification URL in 01. payment request
Interface Applications	If payType=“02” for “payment request” and “returnUrl” is a valid http address, OPRAL will send a “http/https” result notification to “returnUrl” after receiving a successful payment response.
Https Headers	Accept-Charset UTF-8 User-Agent OPREAL/v1 Accept-Language jp
Parameters	Column Name (English) (Level1)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Remarks
1	clientOrderNo	Terminal Processing Serial Number	String	32	N	Processing number generated by the merchant
2	gwOrderNo	GW Processing Serial Number	String	32	N	Processing sequence number generated by GW
3	BrandOrderNo	Financial Institution Number	String	50	N	Payment number generated by the financial institution
4	customerId	Customer ID	String	30	N	Number indicating the individual end user * As for WeChat and Alipay, this corresponds to "openid" and "alipay_login_id,"  respectively
5	orderSubject	Payment Title	String	50	N
6	currencyType	Payment Currency	String	10	N	“Purchased Item” fixed
7	orderPrice	Payment amount	int	11	N	“JPY” fixed
8	Exchange Rate	Exchange Rate	String	16	N	Example: 0.056236
9	actualPrice	Local Currency Payment Amount	Int	11	N	The smallest unit of local currency
10	BrandType	Financial Institution	String	2	N	02: WeChatPay
11	orderStatus	Payment Status	int	4	N	0: Waiting for payment 1: Payment Success 2: Payment in progress 3: Payment Failed 4：Payment cancellation 7: Payment in progress by end user
12	orderStartTime	Payment start time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
13	orderFinishTime	Payment Completed Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
Response example (please note that the columns are in random order)
{ “clientOrderNo”:”samplecode”, “gwOrderNo”:”samplecode”, “brandOrderNo”:”samplecode”, “customerId”:”asd8uy1j2e890sud89″, “orderSubject”:”Purchased Item”, “currencyType”:”JPY”, “orderPrice”:100, “brandType”:”02″, “orderStatus”:1, “orderStartTime”:”2018-01-01 00:00:01″, “orderFinishTime”:”2018-01-01 00:00:02″    }
Response BODY	Column Name (English) (Level1)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Remarks
Any response is allowable provided httpcode is 200. { }

07.Customs Clearance Requirements

Interface Name	Customs Clearance Request
Request Type	POST
URL	Test environment URL: https://{stg-url}/api/pay/customsDeclare/declare Production environment URL：https://{prod-url}/api/pay/customsDeclare/declare
Interface Applications	When online payment is completed, the customs clearance request interface is invoked, and if the customs clearance request status is “2-declaration”, a customs clearance modification request can be implemented.
Parameters	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Remarks
1	clientDeclareNo			Terminal Customs Clearance Number	String	32	Y	Terminal customs clearance number generated by merchant side, A unique check is performed on the GW side.
2	clientOrderNo			Terminal Processing Serial Number	String	32	Y	Terminal processing serial number generated by merchant side, A unique check is performed on the GW side.
3	subClientOrderNo			Sub-terminal Processing Serial Number	String	32	C	A sub terminal process sequential number generated by the Merchant side.  The gateway checks the uniqueness. (Required when the payment is divided)
4	Customs			Customs Code	String	32	Y	GUANGZHOU_ZS Guangzhou (General Administration of Customs) HANGZHOU_ZS Hangzhou (General Administration of Customs) NINGBO Ningbo ZHENGZHOU_BS Zhengzhou (Bonded logistics center) CHONGQING Chongqing SHANGHAI_ZS Shanghai (General Administration of Customs) SHENZHEN Shenzhen ZHENGZHOU_ZH_ZS Zhengzhou general bonded area (General Administration of Customs) TIANJIN Tianjin (if order sheets need to be sent to Tianjin customs,  the registration information of Tianjin customs and the inspection record information of Tianjin need to be placed in the management backstage of the partner.  To call the customs interface,  just pushing the Tianjin customs requests the customs interface.)
5	mchCustomsNo			Supplier Customs Notification Number	String	50	Y	Partner's application number registered with the customs
6	duty			Customs Duties	int	11	N	The currency type is CNY, and the minimum unit is fen
7	isAdd			Additional Flags	String	2	N	Additional Flags 0: No 1: Yes Default value: 1: Yes
8	TransportFee			Sub-order Logistics Costs	int	11	C	The currency type is CNY, and the minimum unit is fen. Required unless subClientOrderNo is NULL
9	productFee			Sub-order Logistics Costs	int	11	C	The currency type is CNY, and the minimum unit is fen. Required unless subClientOrderNo is NULL
10	certId			Identification ID	String	64	N	Identification Number
11	name			Name	String	64	N	User Name
Example
{ “clientOrderNo”:”samplecode”, “clientDeclareNo”:”samplecode”, “customs”:”SHENZHEN”, “mchCustomsNo”:”samplecode” }
Response BODY	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Description
1	result			Customs Clearance Request Result Structure	String	–	N	All the columns are returned  when resultType = "SUCCESS"
2		clientDeclareNo		Terminal Customs Clearance Number	String	32	N
3		gwDeclareNo		GW Customs Clearance Processing Number	String	32	N
4		brandDeclareNo		Financial Institution Customs Clearance Number	String	80	N
5		clientOrderNo		Terminal Processing Serial Number	String	32	N
6		subClientOrderNo		Sub-terminal Processing Serial Number	String	32	N
7		subGwOrderNo		GW Sub-Customs Clearance Processing Number	String	32	N
8		subBrandOrderNo		Sub-financial Institution Customs Clearance Number	String	50	N
9		gwOrderNo		GW Customs Clearance Processing Number	String	32	N
10		BrandOrderNo		Financial Institution Customs Clearance Number	String	50	N
11		verifyDepartment		Verification Agency	String	16	N
12		verifyDepartmentTradeId		Verification Agency Transaction Serial Number	String	80	N
13		BrandType		Financial Institution	String	2	N	02: WeChatPay
14		declareState		Customs Status	int	1	N	0: No application 1: Application success 2: Application submitted 3: Application failed 4: Application error 7: Application in progress
15		certCheckResult		Authentication Status	int	1	N	0: UNCHECKED The partner has not uploaded the purchaser's identification information. 1: SAME The purchaser's identification information uploaded by the partner is the same as the payer's. 2: DIFFERENT The purchaser's identification information uploaded by the partner is different from the payer's.
16		declareStartTime		Customs Declaration Start Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
17		declareUpdateTime		Customs Declaration Last Amendment Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
18		declareFinishTime		Customs Clearance Completion Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
19	resultCode			Processing Result Code	String	64	N
20	resultMessage			Processing Result MSG	String	1024	Y
21	resultType			Processing Result Type	String	15	Y	This result is the result of the process of the payment request and different from the customs clearance status. This is SUCCESS when the customs clearance request is normally created  and the customs clearance interface is normally called. The return value is FAILED in the following cases: 1. When the terminal customs clearance sequential number already exists 2. When failed to call the customs clearance interface 3. When an internal system error occurs
Response example (please note that the columns are in random order)
{ "result":{ “clientOrderNo”:”samplecode”, “gwOrderNo”:”samplecode”, “brandOrderNo”:”samplecode”, “clientDeclareNo”:”samplecode”, “gwDeclareNo”:”samplecode”, “brandDeclareNo”:”samplecode”, “verifyDepartment”:”samplecode”, “verifyDepartmentTradeId”:”samplecode”, “certCheckResult”:”0″, “certCheckResult”:”0″, “declareState”:2, “brandType”:”02″ “declareStartTime”:”2018-01-01 00:00:01″, “declareUpdateTime”:”2018-01-01 00:00:01″ }, ”resultCode”:”0000″, “resultMessage”:”null”, “resultType”:”SUCCESS” }

08.Customs Clearance History Search

Interface Name	Customs Clearance History Search
Request Type	POST
URL	Test environment URL: https://{stg-url}/api/pay/customsDeclare/query Production environment URL：https://{prod-url}/api/pay/customsDeclare/query
Interface Applications	Interface for searching results of customs clearance request.
Parameters	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Remarks
1	clientDeclareNo			Terminal Customs Clearance Number	String	32	Y	Terminal customs clearance number generated by merchant side, A unique check is performed on the GW side.
2	gwDeclareNo			GW Customs Clearance Processing Number	String	32	Y	Customs processing passnumber generated by merchant side, A unique check is performed on the GW side.
Request Example
{ “clientDeclareNo”:”samplecode”, “gwDeclareNo”:”samplecode” }
Response BODY	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Description
1	result			Customs Clearance History Search Structure	String	–	N	If resultType="SUCCESS", all columns are returned.
2		clientDeclareNo		Terminal Customs Clearance Number	String	32	N
3		gwDeclareNo		GW Customs Clearance Processing Number	String	32	N
4		brandDeclareNo		Financial Institution Customs Clearance Number	String	80	N
5		clientOrderNo		Terminal Processing Serial Number	String	32	N
6		subClientOrderNo		Sub-terminal Processing Serial Number	String	32	N
7		subGwOrderNo		GW Sub-Customs Clearance Processing Number	String	32	N
8		subBrandOrderNo		Sub-financial Institution Customs Clearance Number	String	50	N
9		gwOrderNo		GW Customs Clearance Processing Number	String	32	N
10		BrandOrderNo		Financial Institution Customs Clearance Number	String	50	N
11		verifyDepartment		Verification Agency	String	16	N
12		verifyDepartmentTradeId		Verification Agency Transaction Serial Number	String	80	N
13		BrandType		Financial Institution	String	2	N	02: WeChatPay
14		declareState		Customs Status	int	1	N	0: No application 1: Application success 2: Application submitted 3: Application failed 4: Application error 7: Application in progress
15		certCheckResult		Authentication Status	int	1	N	0: UNCHECKED The partner has not uploaded the purchaser's identification information. 1: SAME The purchaser's identification information uploaded by the partner is the same as the payer's. 2: DIFFERENT The purchaser's identification information uploaded by the partner is different from the payer's.
16		declareStartTime		Customs Declaration Start Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
17		declareUpdateTime		Customs Declaration Last Amendment Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
18		declareFinishTime		Customs Clearance Completion Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
19	resultCode			Processing Result Code	String	64	N
20	resultMessage			Processing Result MSG	String	1024	Y
21	resultType			Processing Result Type	String	15	Y	This result is the result of the process of the payment request and different from the customs clearance status. This is SUCCESS when the customs clearance request is normally created  and the customs clearance interface is normally called. The return value is FAILED in the following cases: 1. When the terminal customs clearance sequential number already exists 2. When failed to call the customs clearance interface 3. When an internal system error occurs
Response example (please note that the columns are in random order)
{ "result":{ “clientOrderNo”:”samplecode”, “gwOrderNo”:”samplecode”, “brandOrderNo”:”samplecode”, “clientDeclareNo”:”samplecode”, “gwDeclareNo”:”samplecode”, “brandDeclareNo”:”samplecode”, “verifyDepartment”:”samplecode”, “verifyDepartmentTradeId”:”samplecode”, “certCheckResult”:”0″, “certCheckResult”:”0″, “declareState”:2, “brandType”:”02″ “declareStartTime”:”2018-01-01 00:00:01″, “declareUpdateTime”:”2018-01-01 00:00:01″ }, ”resultCode”:”0000″, “resultMessage”:”null”, “resultType”:”SUCCESS” }

09. Customs Re-Clearance Request

Interface Name	Customs Clearance Re-request
Request Type	POST
URL	Test environment URL: https://{stg-url}/api/pay/customsDeclare/redeclare Production environment URL：https://{prod-url}/api/pay/customsDeclare/redeclare
Interface Applications	The customs clearance can be requested again when the customs clearance request status is "2 - Application."
Parameters	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Remarks
1	clientDeclareNo			Terminal Customs Clearance Number	String	32	Y	Terminal customs clearance number generated by merchant side, A unique check is performed on the GW side.
2	gwDeclareNo			GW Customs Clearance Processing Number	String	32	Y	Customs processing passnumber generated by merchant side, A unique check is performed on the GW side.
Request Example
{ “clientDeclareNo”:”samplecode”, “gwDeclareNo”:”samplecode” }
Response BODY	Column Name (English) (Level1)	Column Name (English) (Level2)	Column Name (English) (Level3)	Column Name	Parameter Type	Character	Required (Y: Required, N: Optional)	Description
1	result			Customs Clearance Re-request Result Structure	String	–	N	All the columns are returned  when resultType = "SUCCESS"
2		clientDeclareNo		Terminal Customs Clearance Number	String	32	N
3		gwDeclareNo		GW Customs Clearance Processing Number	String	32	N
4		brandDeclareNo		Financial Institution Customs Clearance Number	String	80	N
5		clientOrderNo		Terminal Processing Serial Number	String	32	N
6		subClientOrderNo		Sub-terminal Processing Serial Number	String	32	N
7		subGwOrderNo		GW Sub-Customs Clearance Processing Number	String	32	N
8		subBrandOrderNo		Sub-financial Institution Customs Clearance Number	String	50	N
9		gwOrderNo		GW Customs Clearance Processing Number	String	32	N
10		BrandOrderNo		Financial Institution Customs Clearance Number	String	50	N
11		verifyDepartment		Verification Agency	String	16	N
12		verifyDepartmentTradeId		Verification Agency Transaction Serial Number	String	80	N
13		BrandType		Financial Institution	String	2	N	02: WeChatPay
14		declareState		Customs Status	int	1	N	0: No application 1: Application success 2: Application submitted 3: Application failed 4: Application error 7: Application in progress
15		certCheckResult		Authentication Status	int	1	N	0: UNCHECKED The partner has not uploaded the purchaser's identification information. 1: SAME The purchaser's identification information uploaded by the partner is the same as the payer's. 2: DIFFERENT The purchaser's identification information uploaded by the partner is different from the payer's.
16		declareStartTime		Customs Declaration Start Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
17		declareUpdateTime		Customs Declaration Last Amendment Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
18		declareFinishTime		Customs Clearance Completion Time	String	20	N	datetime format "YYYY-MM-DD HH:MI:SS"
19		Explanation		Customs Clearance Description	String	128	N
20	resultCode			Processing Result Code	String	64	N
21	resultMessage			Processing Result MSG	String	1024	Y
22	resultType			Processing Result Type	String	15	Y	This result is the result of the process of the payment request and different from the customs clearance status. This is SUCCESS when the customs clearance request is normally created  and the customs clearance interface is normally called. The return value is FAILED in the following cases: 1. When the terminal customs clearance sequential number already exists 2. When failed to call the customs clearance interface 3. When an internal system error occurs
Response example (please note that the columns are in random order)
{ "result":{ “clientOrderNo”:”samplecode”, “gwOrderNo”:”samplecode”, “brandOrderNo”:”samplecode”, “clientDeclareNo”:”samplecode”, “gwDeclareNo”:”samplecode”, “brandDeclareNo”:”samplecode”, “verifyDepartment”:”samplecode”, “verifyDepartmentTradeId”:”samplecode”, “certCheckResult”:”0″, “certCheckResult”:”0″, “declareState”:2, “brandType”:”02″ “declareStartTime”:”2018-01-01 00:00:01″, “declareUpdateTime”:”2018-01-01 00:00:01″ }, ”resultCode”:”0000″, “resultMessage”:”null”, “resultType”:”SUCCESS” }

System Processing Sequence

Web Type (PC payment)

"Payment Request Sequence" *WeChat Pay

Abnormality

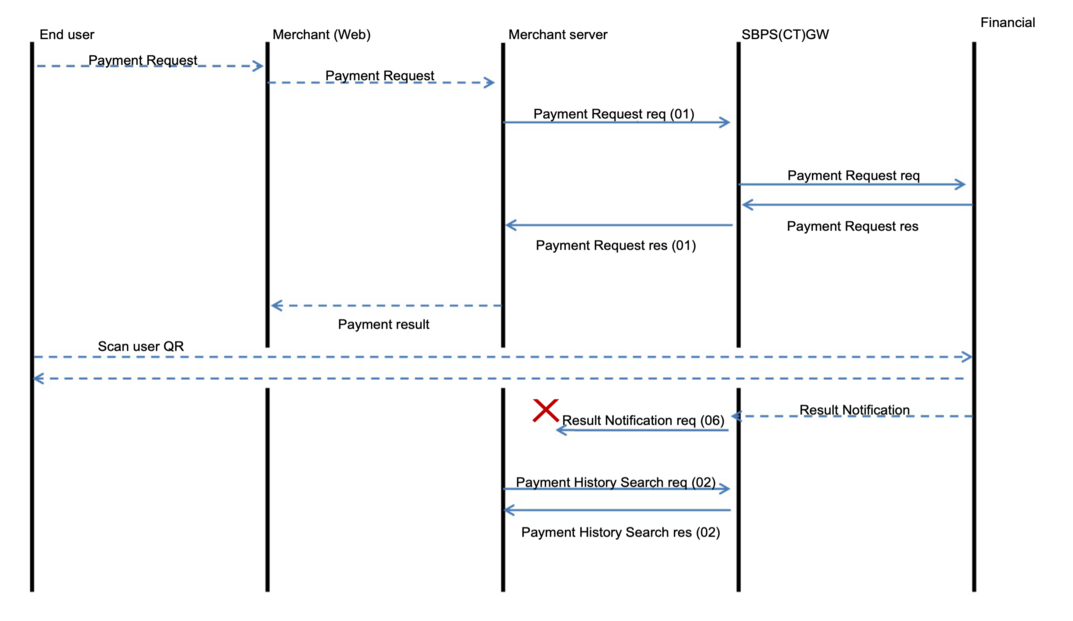

“Unable To Receive Result Notification Sequence (recommended) *WeChat Pay

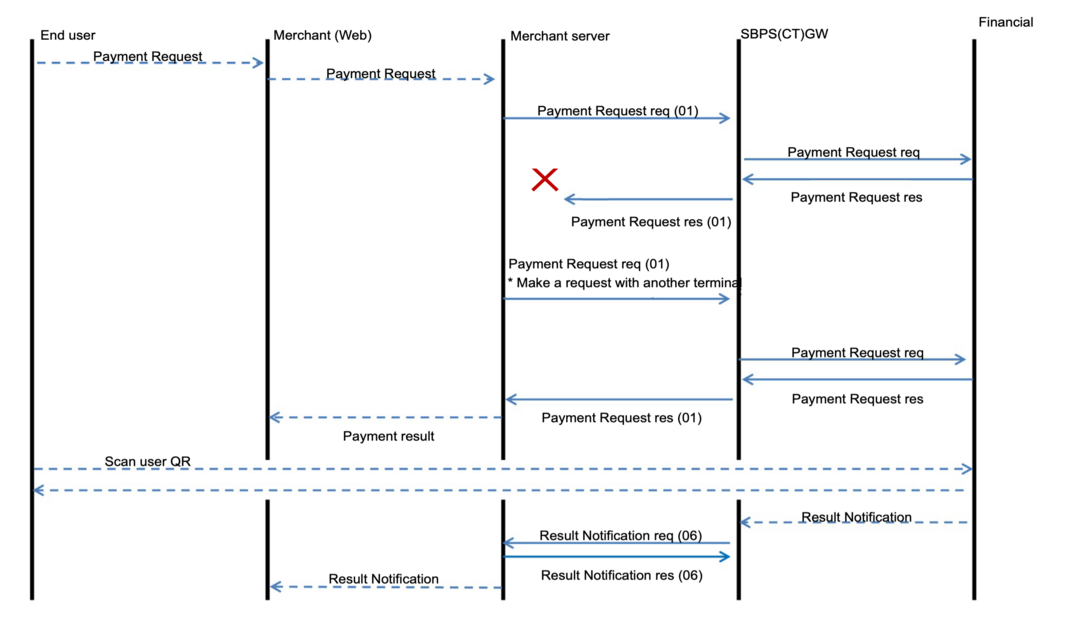

“Unable To Receive Payment Request Response Sequence (recommended) *WeChat Pay

Web Type (Smartphone Payment)

"Settlement sequence" * WeChat Pay
* The end user's terminal is a smartphone, and the browser is not the WeChat browser

Abnormality

“Unable To Receive Result Notification Sequence (recommended) *WeChat Pay
* The end user's terminal is a smartphone, and the browser is not the WeChat browser

“Unable To Receive Payment Request Response Sequence (recommended) *WeChat Pay

InAPP type

"Settlement sequence" * WeChat Pay

Abnormality

“Unable To Receive Result Notification Sequence (recommended) *WeChat Pay

“Unable To Receive Payment Request Response Sequence (recommended) *WeChat Pay

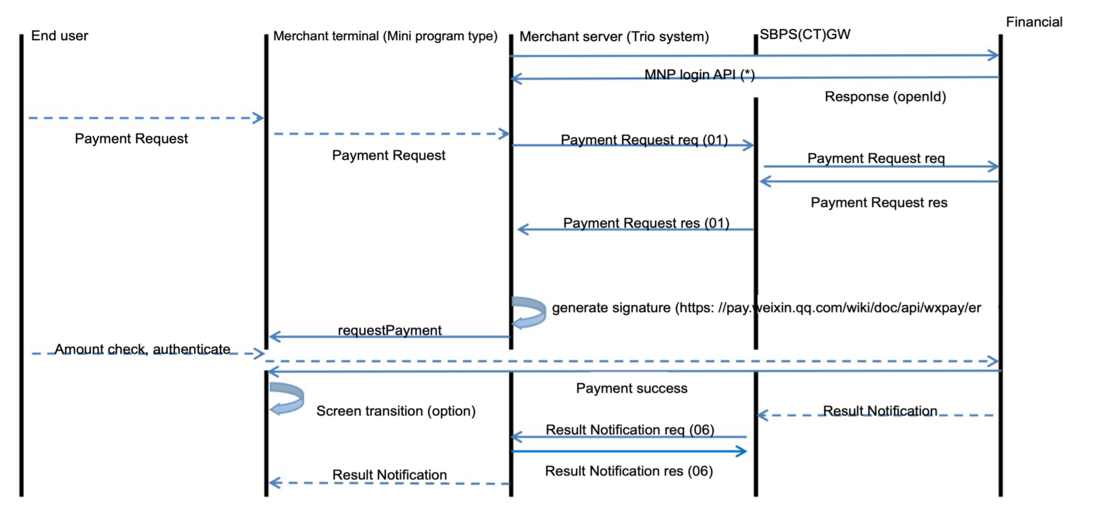

Mini Program Type

"Settlement sequence" * WeChat Pay

Abnormality

“Unable To Receive Result Notification Sequence (recommended) *WeChat Pay

“Unable To Receive Result Notification Sequence (recommended) *WeChat Pay

Customs Clearance Invoice

"Custom Clearance Request Sequence" *WeChat Pay

“Customs Clearance Re-request Sequence” *WeChat Pay

"Customs Clearance Re-quest Re-send Sequence" *WeChat Pay

Payment cancellations, refunds, and searches

The "Payment cancellation", "Refund request", "Payment history search", and "Refund history search" sequences are common to the WEB type (PC, smartphone), InApp type, and mini-program type.

Payment Cancellation

Refund request

Payment History Search

Refund History Search

HTTP Header

About AccessToken

* An access token is mandatory.
* Each Merchant shall generate and manage an access token.
The access token shall be embedded in "X-OPREAL-AccessToken" of the Header.
* For details about how to embed the header, see [HTTP Header].

About Linking AccessToken

Regarding the access token, after passing the merchant screening, SBPS Merchant Support will send the "Connection Information Guide (PDF)" to the person in charge by email.

Public Key

About the public key for the external terminal platform

An external terminal platform shall generate its own RSA public key (we recommend to use the RSA2 format. They will be referred to as the "external public key" and "external private key" later.) and upload the public key to the OLGW platform to obtain a public key for the OLGW platform (referred to as the "OLGW public key" later).

* Note 1: The access platform shall store the external private key,
and if the key is lost, it shall generate a key again and upload the key to OLGW.
* Note 2: The external platform shall make sure that the public key
and private key are the proper pair. If they are not a proper pair, direct payments will fail.

WeChat Pay SDK

1. iOS/Android Project Settings

https://pay.weixin.qq.com/wiki/doc/api/wxpay/en/pay/In-AppPay/chapter6_2.shtml

2. Signature Algorithm

https://pay.weixin.qq.com/wiki/doc/api/wxpay/en/pay/chapter2_2.shtml#menu1

Sign Specifications

Sine Value Generation Specifications

1. Sort parameters in the POST body in ascending order (A to Z)
2. Concatenate the key and value with "="
3. Concatenate key value pairs with "&"
4. If there are nests, substitute "&" for links of commas (",") in the nests.
5. If the value is NULL, it is out of the target of signature.
6. Attach a signature with RSA of the "SHA 256 WithRSA" method using the private key of the platform.

Processing Result Code

■ resultCode for payment success

resultCode	resultMessage
0000	* Although this is success, there is no return value for "resultMessage".

■ resultCode returned from gateway

resultCode	resultMessage
param.access_token.invalid	Invalid Access Token
param.invalid	Invalid Parameter [{0}]
param.signature.invalid	Invalid Signature[{0}]
param.signature.isnull	[Signature] is empty, please enter a value
param.access_token.isnull	[Access Token] is empty, please enter a value
param.http_request_body.format.error	HttpRequest body format error
param.format.error	[{0}] Parameter format error
param.format.overlength.error	[{0}] field is too long
param.isnull.error	[{0}] is empty, please enter a value
param.format.over_maximum	[{0}]Exceeds the maximum value of {1}
order_info.not_same_company	The company code does not exist.
order_info.not_exist	There is no corresponding payment
order_info.not_pay_ok	The payment was not completed correctly.
order_info.client_order_no.duplicate	The terminal processing serial number is duplicated.
refund_info.refund_price.incorrect	Refund amount is invalid, Refund amount {0}
refund_info.refund_price.exceed_possible	Refund amount exceeds limit
refund_info.refund_no.duplicate	The corresponding refund processing number already exists.
order_info.pay_brand.invalid	Payment brand can not be selected
order_info.return_url.illegal	The payment URL is invalid.
order_info.expired	The payment has expired
refund_info.begin_processed_by_others	Someone else is refunding the payment
order_info.pay_type.incorrect	The value of [{0}] is invalid
order_info.pay_type.building	The payment brand is not available.
order_info.brand_type.building	The payment brand is not available.
order_info.brand_type.incorrect	The value of [{0}] is invalid
order_info.order_no.invalid	Please set the terminal processing serial number/GW processing serial number/financial institution number
refund_info.refund_no.invalid	Please set the terminal refund processing serial number/GW refund processing serial number/financial institution refund number
order_info.order_status.invalid	The value of [{0}] is invalid
order_info.has_refund.invalid	The value of [{0}] is invalid
refund_info.refund_status.invalid	The value of [{0}] is invalid
order_info.not_belong_to_this_open_account	The payment does not belong to this account
refund_info.not_belong_to_this_open_account	The refund does not belong to this account
org_order_info.not_belong_to_this_open_account	The original payment does not belong to this account
refund_info.not_exist	There is no corresponding refund
weixin.sub_mch_id.invalid	Invalid SubMchID
weixin.pay_config.invalid	Wechat connection parameters are invalid {0}
order_info.sub_brand.invalid	Payment sub-brand can not be selected
order_info.branch_unit.pay_brand.invalid	Branch payment brand can not be selected
order_info.trade_not_support	The transaction does not support authorization.
order_info.order_price.exceed_possible	The payment amount exceeded the authorized amount.
declare_order_info.not_belong_to_this_open_account	Customs clearance information does not belong to this account
declare_order_info.not_exist	There is no relevant customs clearance information.
declare_order_info.declare_order_no.invalid	Please enter your customs number/platform customs number
declare_order_info.client_declare_no.duplicate	Customs number is duplicated
declare_order_info.amount.incorrect	[{0}]Amount is invalid, Amount:{1}
order_info.branch.invalid	Unable to obtain payment store
branch_unit.pay_type.invalid	This branch does not accept payments for {0}.
order_info.has_been.paid	The payment has already been processed and cannot be cancelled.
order_info.has_been.refunded	The transaction has been fully refunded
fail	The operation or process timed out.

Processing Result Code

■ resultCode returned from financial institution (WeChat Pay)

resultCode	resultMessage
SYSTEM ERROR	System error
PARAM_ERROR	Incorrect parameter description
ORDERPAID	Corresponding payment is already complete.
NOAUTH	Not authorized to use the relevant API.
AUTHCODEEXPIRE	User's code has been expired.
NOTENOUGH	Insufficient user's balance
NOTSUPORTCARD	User's card does not support this payment method.
ORDERCLOSED	Corresponding payment has been closed.
ORDERREVERSED	Corresponding payment has been canceled.
BANKERROR	System error in the bank
USER PAYING	User is required to enter the payment password.
AUTH_CODE_ERROR	Incorrect request parameter description
AUTH_CODE_INVALID	Scanned code is not WeChat Pay code.
XML_FORMAT_ERROR	XML format error
REQUIRE_POST_METHOD	Parameters are not sent by POST method.
SIGNERROR	Wrong signature
LACK_PARAMS	Missing request parameter
NOT_UTF8	Wrong coding format
BUYER_MISMATCH	Payment account has been changed.
APPID_NOT_EXIST	APPID does not included in the parameter.
MCHID_NOT_EXIST	MCHID does not included in the parameter.
OUT_TRADE_NO_USED	Merchant payment number is duplicated.
APPID_MCHID_NOT_MATCH	appid does not match mch_id.
INVALID_REQUEST	Invalid request
POST_DATA_EMPTY	Missing request parameter
ORDERNOTEXIST	Corresponding payment does not exist.
BIZERR_NEED_RETRY	Internal Error
TRADE_OVERDUE	Refundable period has passed.
ERROR	Other error
USER_ACCOUNT_ABNORMAL	Abnormality in the user account
INVALID_REQ_TOO_MUCH	Number of invalid requests reached the upper limit.
INVALID_TRANSACTIONID	Invalid transaction ID
REFUNDNOTEXIST	Corresponding refund does not exist.
ACCOUNTERROR	Unusable account
RULELIMIT	Credit limit would be exceeded.
132011004	Parameter error
132021028	Different currency type
MCHID_NOT_SET	Merchant number is not specified.
MCHID_INVALID_LENGTH	Invalid length of the trade name
CUSTOMSCONFIG_NOT_SET	Customs configuration is not specified.
FEETYPE_NOT_SET	Currency type is not specified.
OUTTRADENO_NOT_SET	Partner order number is not specified.
TRANSACTION_ID_NOT_SET	WeChat Pay order number is not specified.
INVALID_TRANSACTION_ID	Invalid length of the WeChat Pay order number
CUSTOMS_NOT_SET	Customs information is not specified.
CHCUSTOMSNO_NOT_SET	Customs application number is not specified.
INVALID_MCHCUSTOMSNO	Invalid length of the customs application number
PAYFEE_NOT_MATCH	Amount of money does not match.
INVALID_SUBORDER_NO	Invalid length of the sub order
AUTHORITY_NOT_FOUND	Auto customs function is not opened.
NO_AUTH	No rights
ORDER_REFUNDED	Corresponding transaction has already been fully refunded.
ORDER_NEED_DECLARE	Status of the corresponding transaction is that no application is made for customs.
FAILED	Consult the payment center.
